LHD Taurus Fan Install

NAXJA member Muad'Dib was kind enough to give me some photographs of a Taurus fan install on his LHD after following my write up. He has been most pleased with the results. All pictures can be clicked on to expand them.

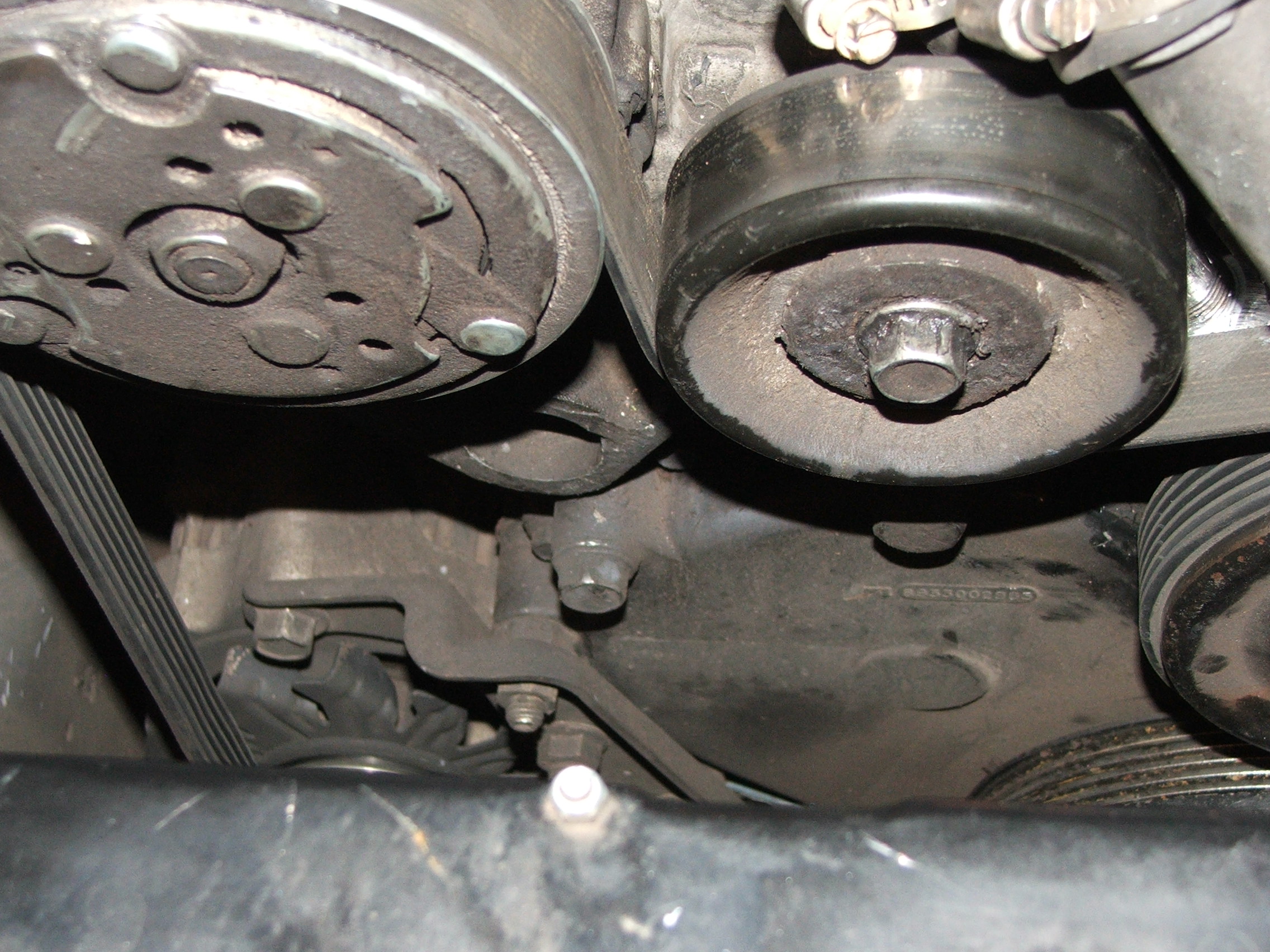

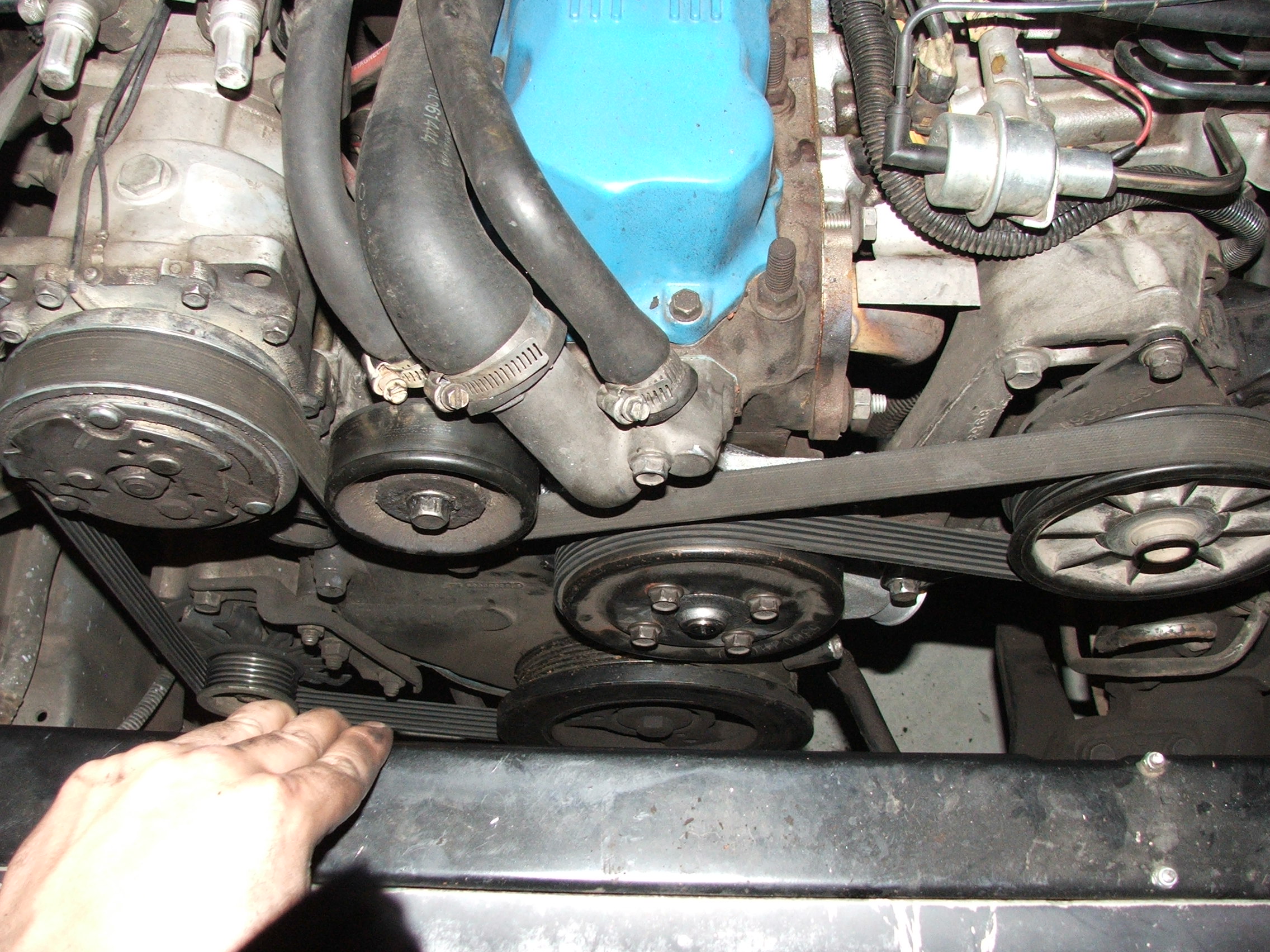

Here you can clearly see the removed old fan pulley mount and the belt routing afterwards.

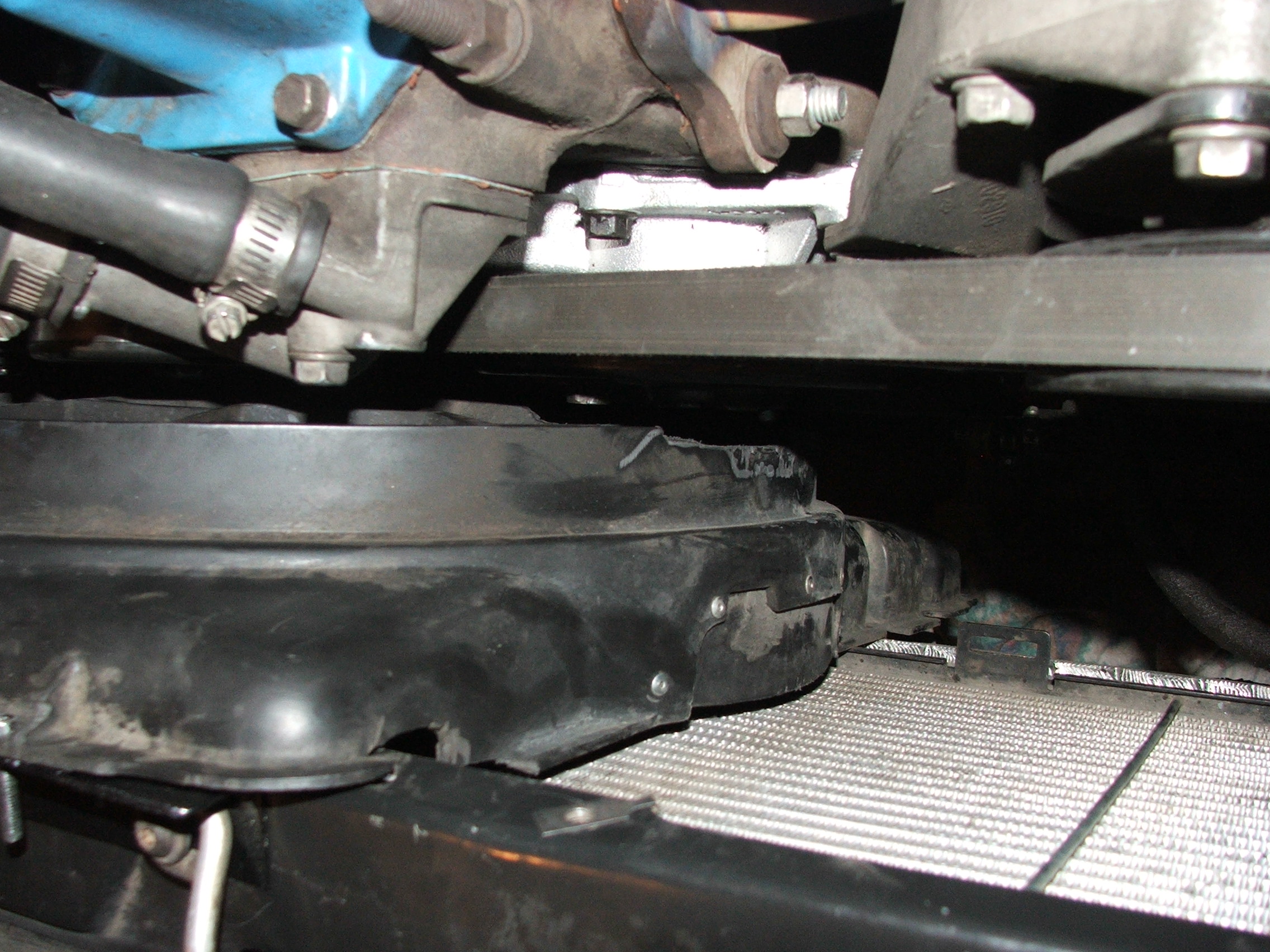

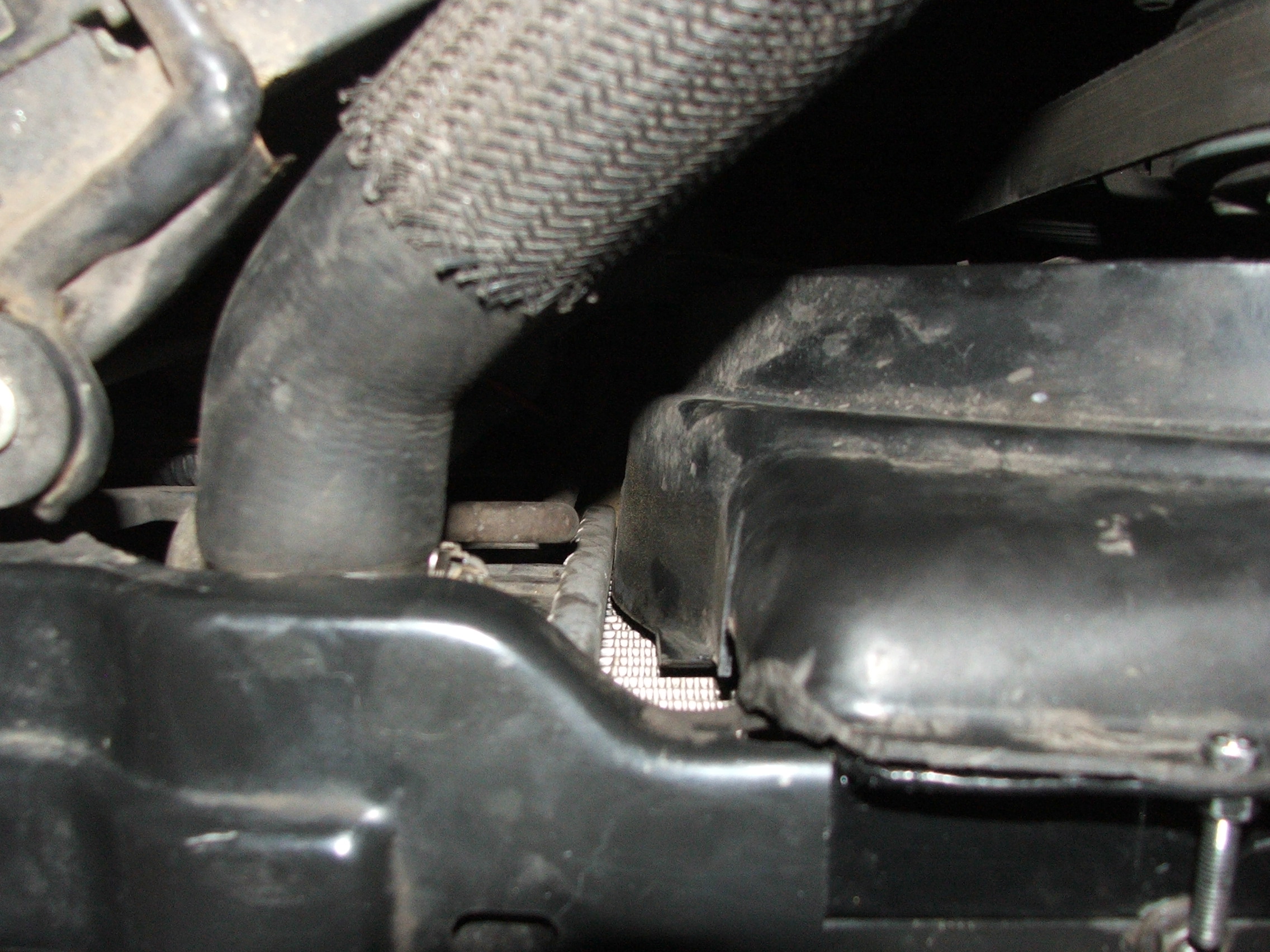

Notice the cutting around the top support. Most important that you get the shroud against the core.

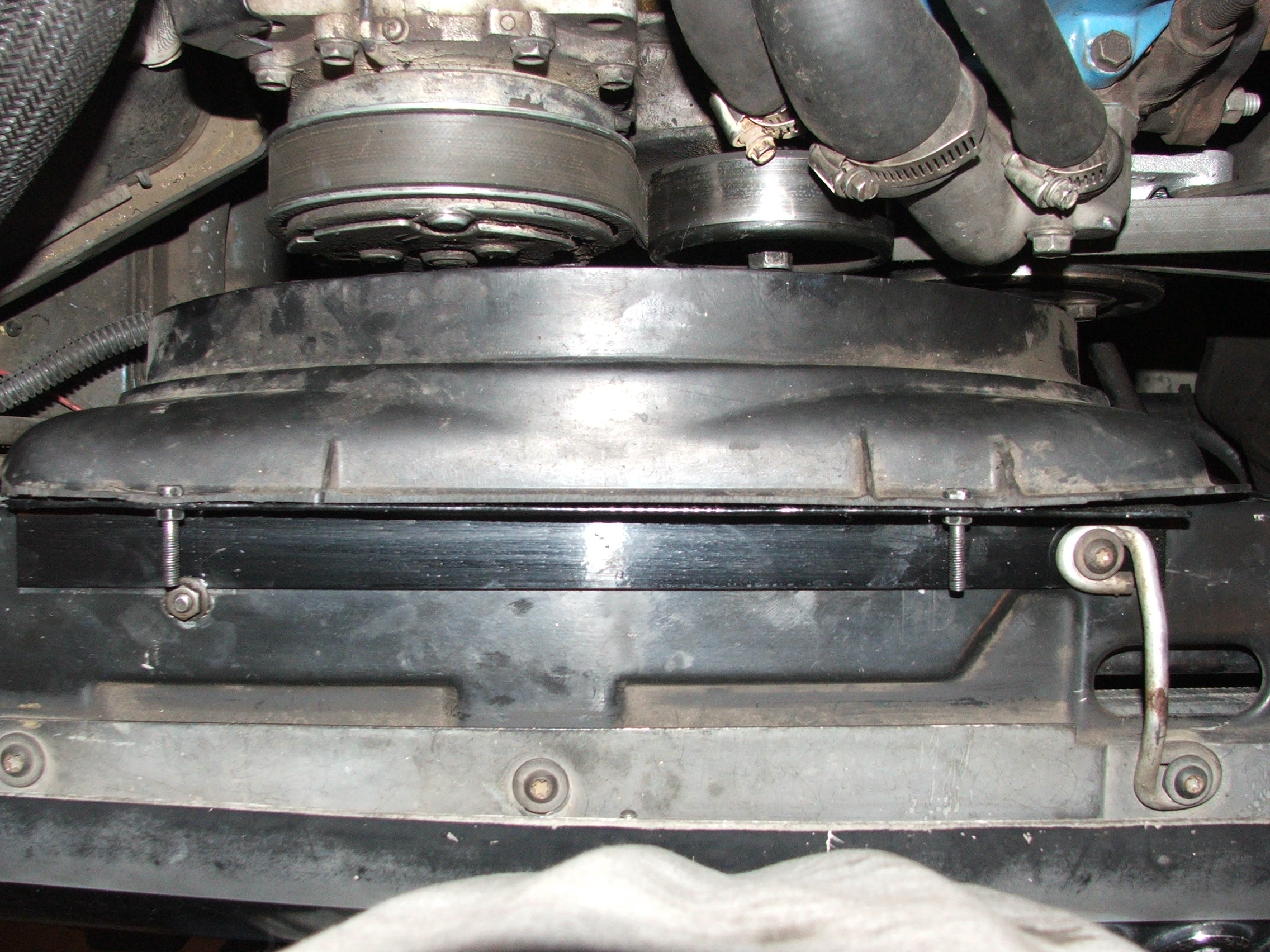

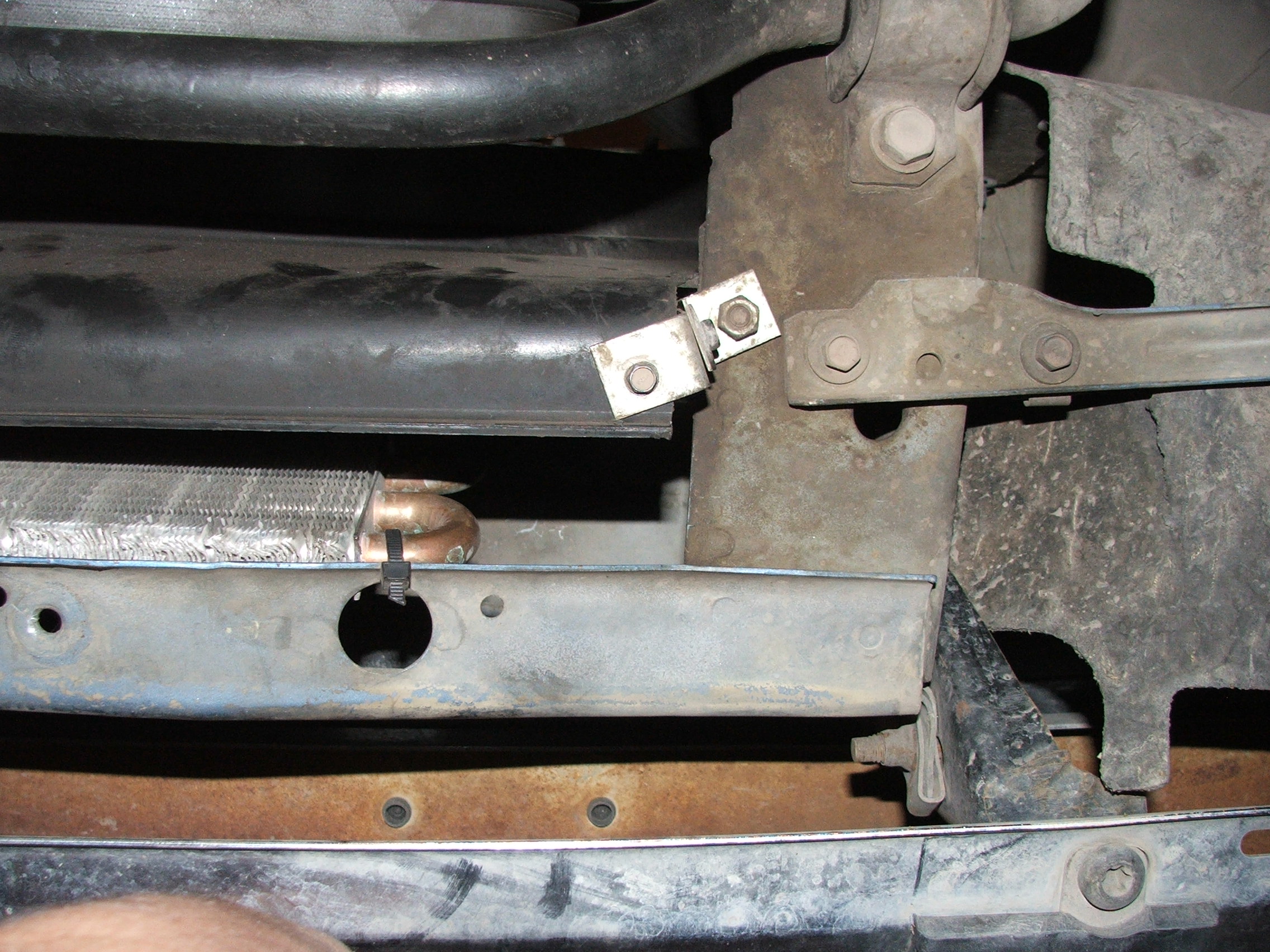

View from underneath showing bottom mount and auto cooler. Also the top mount shown.

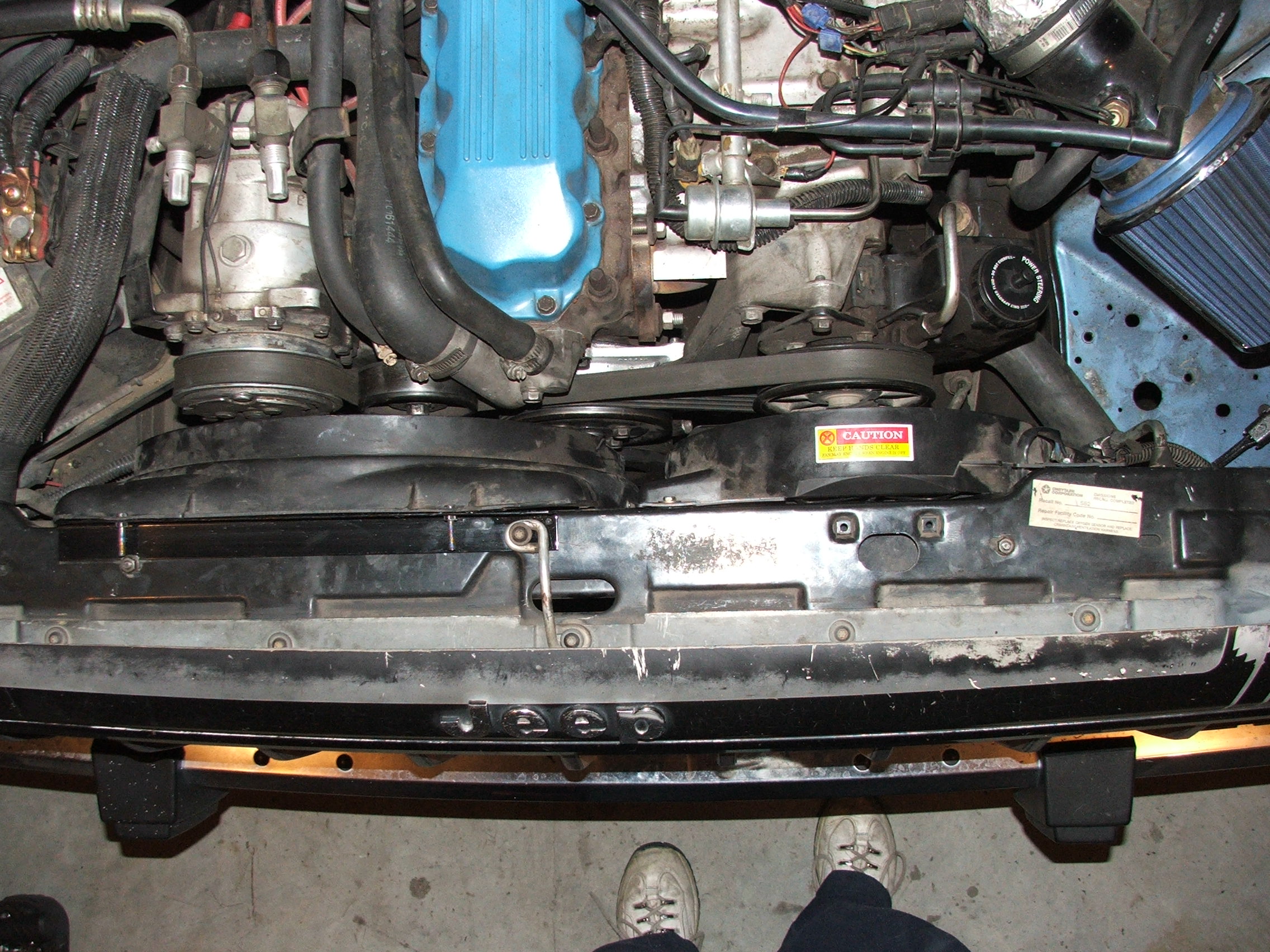

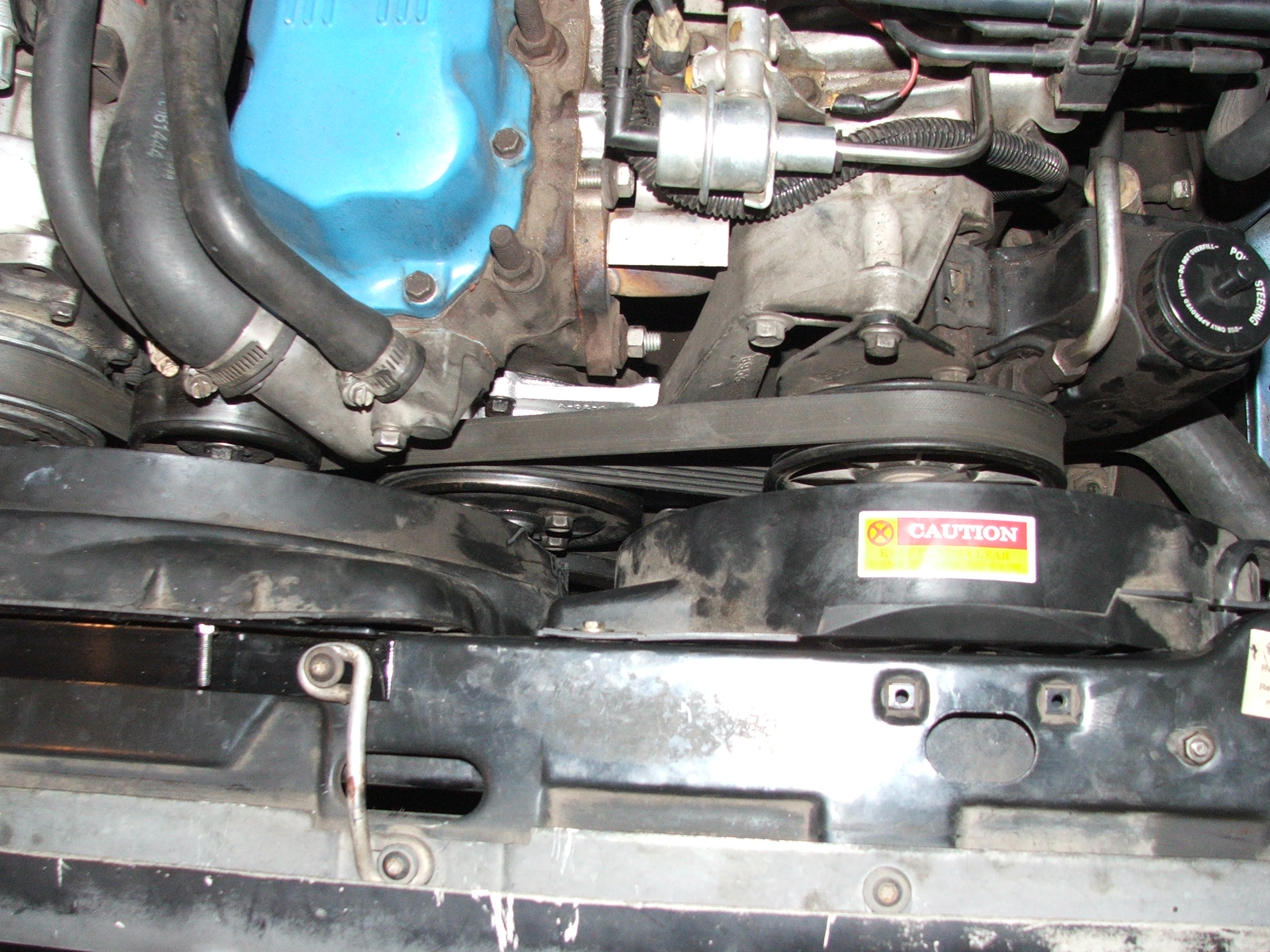

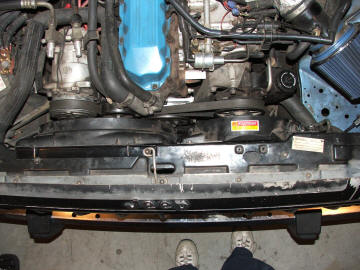

Top view of the completed install with the A/C stock fan back in place also.

Maud'Dib used a 82.75", 6 ribbed belt, #827K6, like this Gatorback one from Goodyear #4060827.
