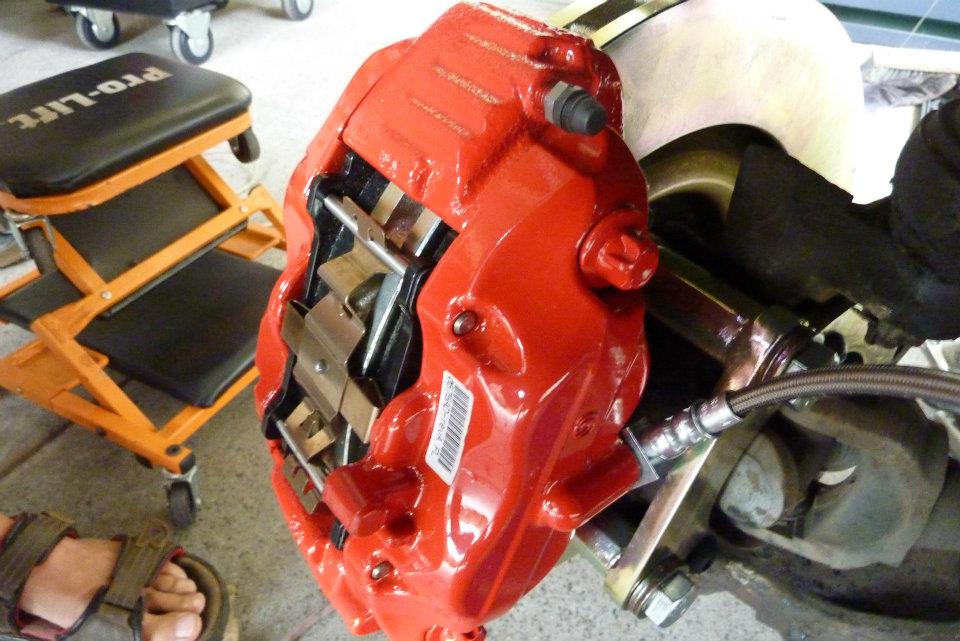

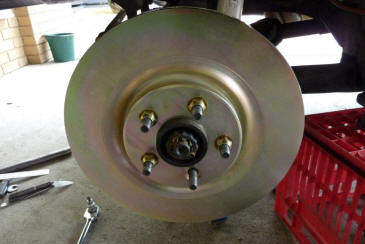

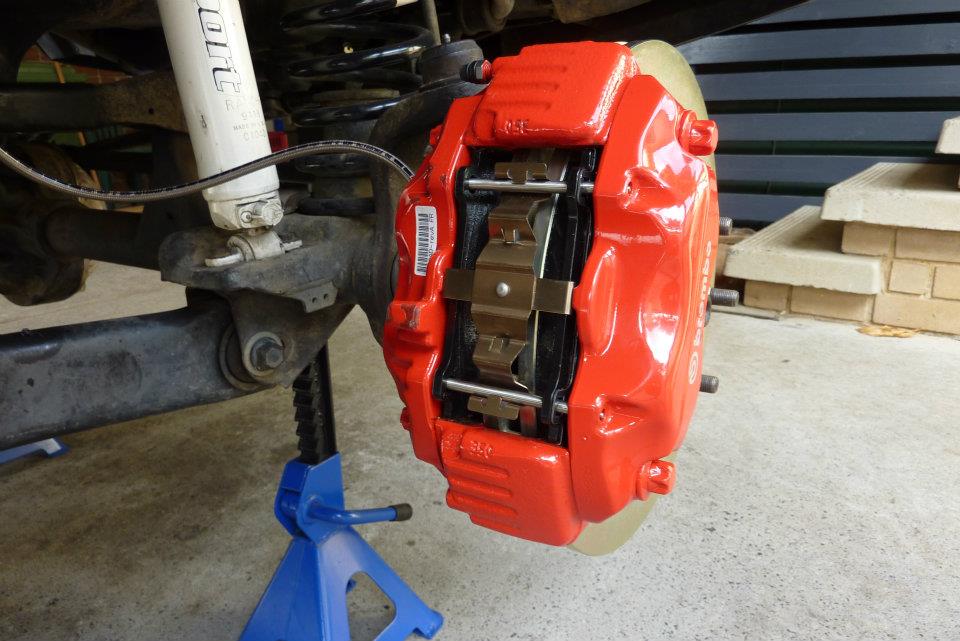

Huge rotor in place! Had to take a couple of millimetres off the outer edge of the hub to fit it right on as this brand of rotor was slightly different to the one I borrowed for setup. Caliper bolted on.

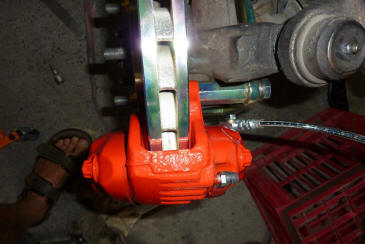

Nicely centred even though the angle of the photo makes it look otherwise. Rotors are 32mm thick. Had to fit the brake line before hand as was a little tight getting it on there afterwards.

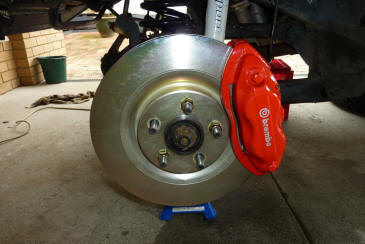

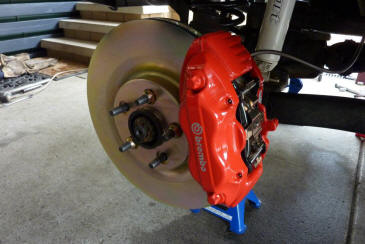

Ready to rumble! Both sides now done.

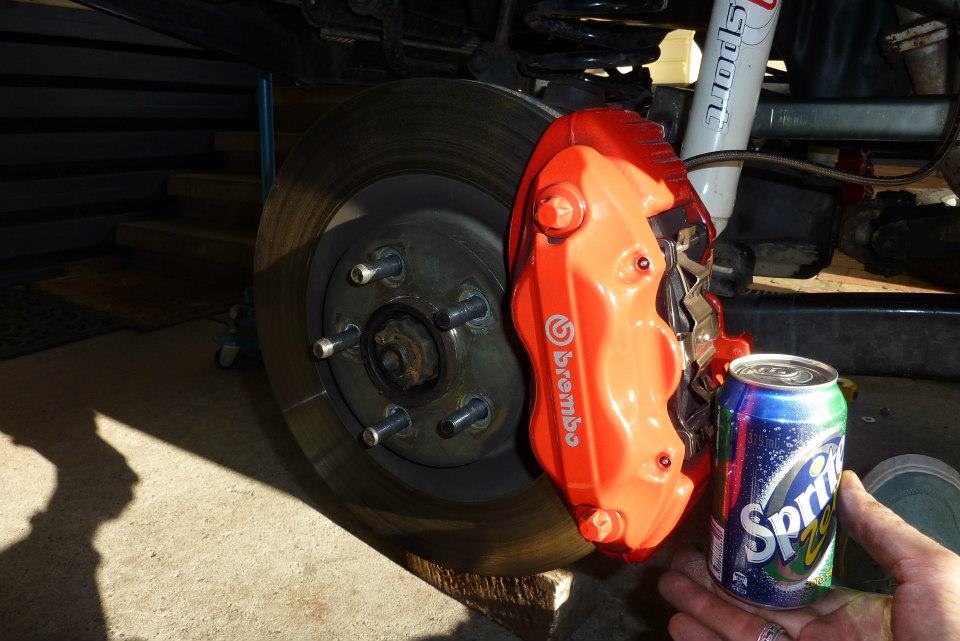

I'm holding it level with the bottom of the caliper and it is twice the size of a standard soda can! They fill the wheels nicely. Nothing worse than big wheels and little brakes!

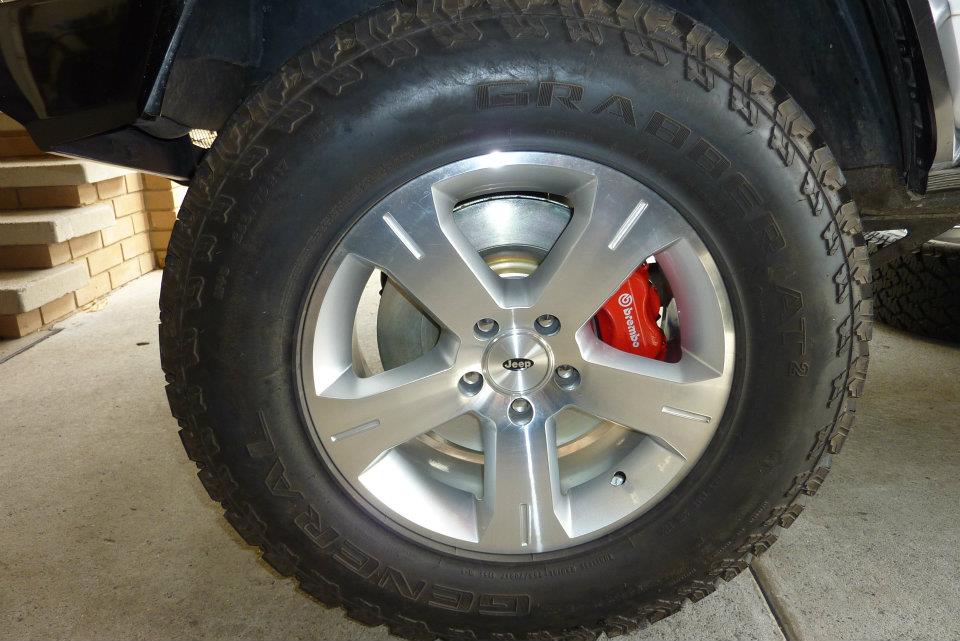

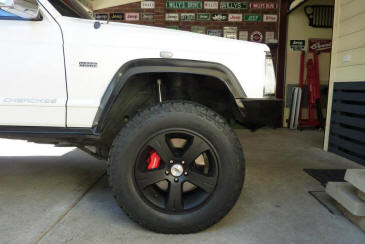

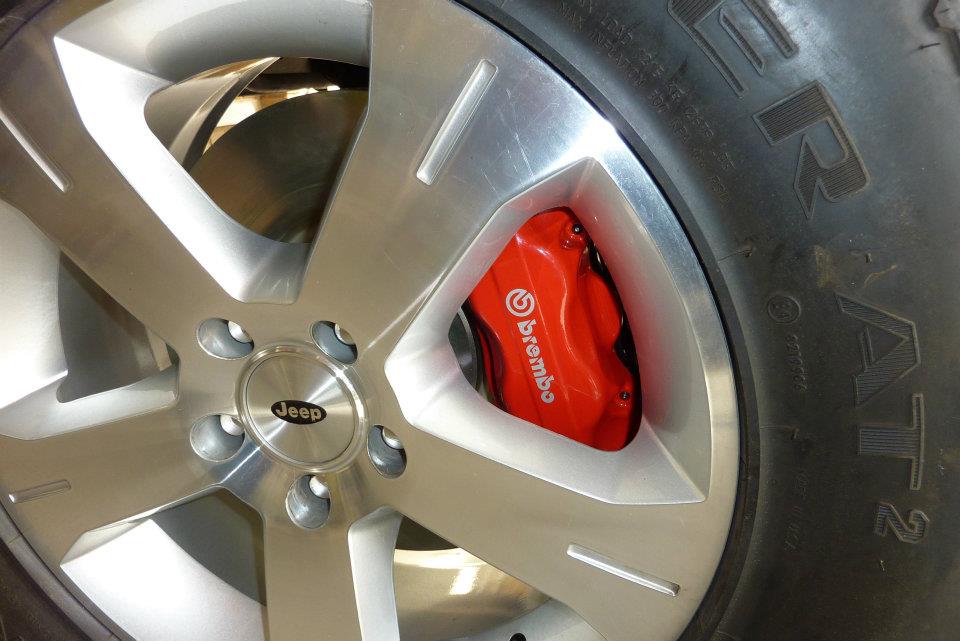

Plenty of clearance behind the spokes with these wheels. They look even better after I Plasti-dipped the wheels.
